Oceanex Morph battery tank

Our battery packs are freely configurable in terms of capacity and tank cap. The charger is included as standard, but can be omitted when reordering.

If you have special requests for gyro diving and sidemount such as additional belt loops, other cable lengths, etc., please send us an email .

The available SIZES are:

XS - 23.8 Ah/ 265 Wh, NOT flightworthy, 8h burntime with Oceanex lamp heads. With 60W heater & lamp head approx. 4h at 1/3 use of heater

XS TravelKit - 2x 6.8Ah/ 2x 75Wh, IATA compliant and AIRWORTHY, otherwise like Mini

Mini - 13.8 Ah/ 150 Wh, only CONDITIONALLY suitable for flight, 4h burntime with Oceanex lamp heads. With 60W heater & lamp head approx. 2h at 1/3 use of heater

Micro - 6.8Ah/ 75Wh, IATA compliant and AIRWORTHY, 2:15h burntime with Oceanex lamp heads. With 60W heater & lamp head approx. 55min at 1/3 use of heater

TANK CAP :

Classic - 1 WAM-Cord 85cm, 1 switch

DUAL - 2 WAM Cords 85/85cm, 2 Switches

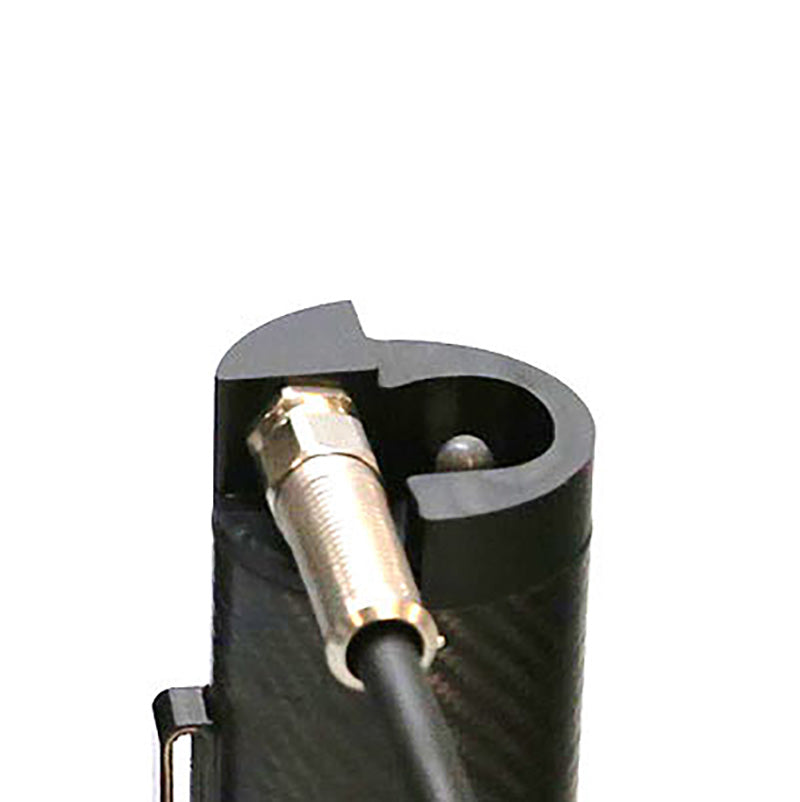

Sidemount - 1 WAM-Cord 100cm 90° angled/ 1 switch

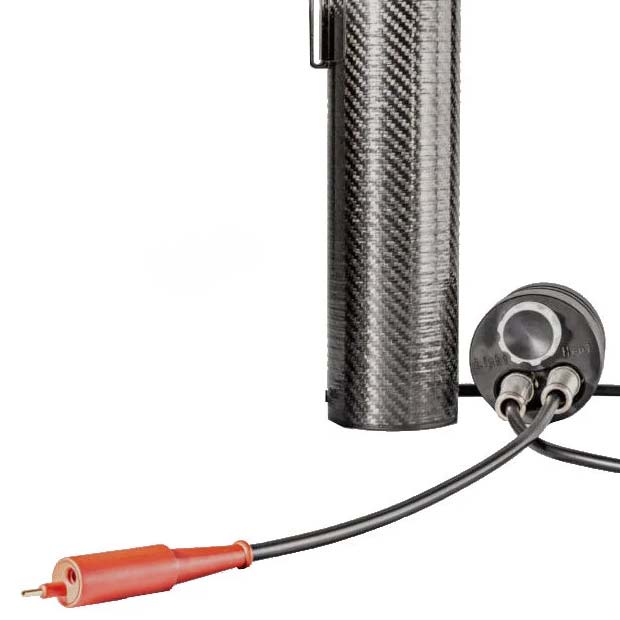

HEAT - 1 WAM-Cord 85cm, 1 WAM-Cord 35cm red plug, 1 electronic switch with 2 functions: Press (on/off long cable for light) & Turn (stepless heating switching short cable)

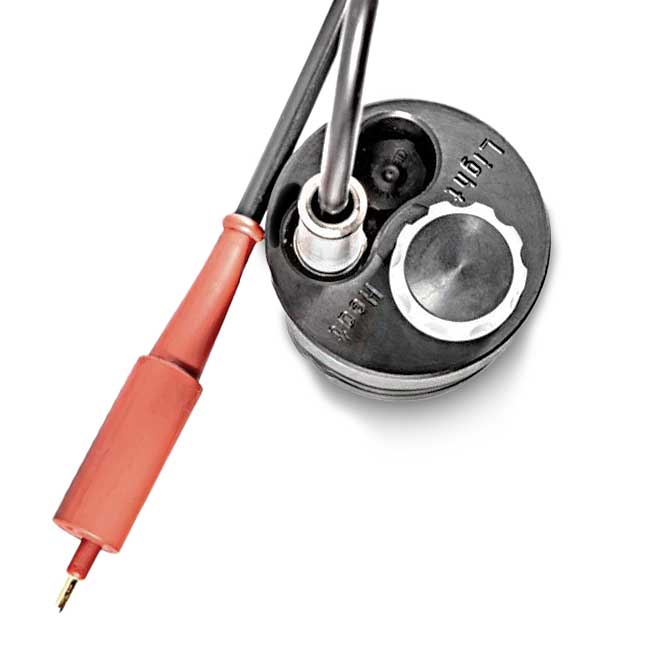

HEAT ONL Y - 1 WAM-Cord 35cm red plug, 1 Electronic dimmer switch with 1 function

The tried and tested battery packs from WingsAndMore, as well as the lamp heads from Oceanex, only come with the new WAM cord. Why is that good?

Conventional E/O cords are made of a porous rubber mixture and wear out relatively quickly, especially on the sealing surfaces - the result is leaky plugs. WAM cords are made of PU and the plug is more solidly constructed. In addition, the coaxial cable is very difficult to break - in contrast to the coarse strands on the normal E/O. The WAMs naturally fit all conventional E/O cables and replicas.
